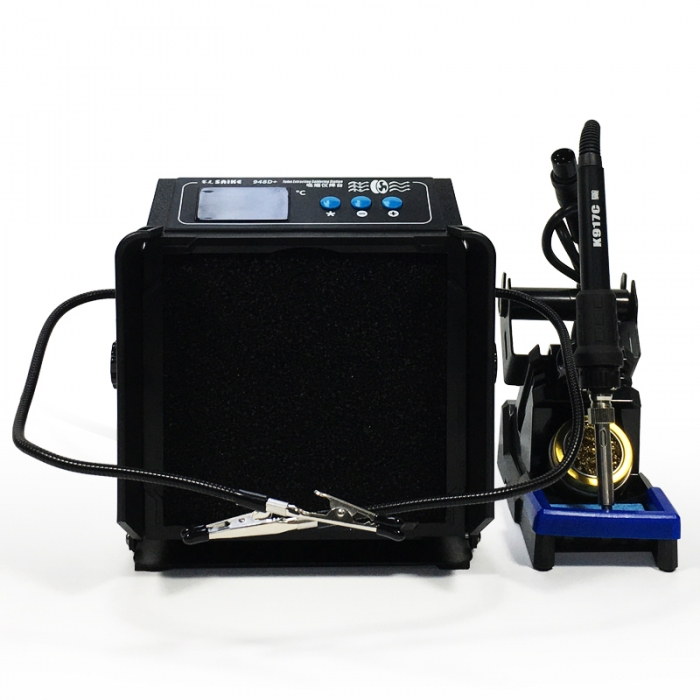

SAIKE 948D+ 110W Soldering station and Smoking apparatus with Universal clamp
$139.00
Description
Features
1. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. The machine has self-detection function, and the intelligent overtemperature, short circuit, open circuit and overload fault are displayed and protected.
3. The machine is connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Soldering iron uses the specially built 948D+ ceramic heating core, which is more powerful and has high efficiency and temperature compensation speed, and can complete the welding task quickly and accurately. Therefore, it is very suitable for the diswelding of various solder joints, especially for the diswelding of large solder joints, rough blocks and miscellaneous difficult solder joints.
5. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
6. Soldering iron has a 10-minute fixed hibernation function (This feature can be turned on or off). When no one is in use, the soldering iron is at rest. After about 10 minutes, the soldering iron will enter the hibernation state.
7. Soldering iron has the function of automatic shutdown. When the soldering iron enters the hibernation state for 30 minutes, the soldering iron automatically shuts down and displays “—“. After restarting the power supply, the heating is resumed.
8. Using Ferro-alloy soldering iron seat, iron tip polishing box containing rosin and soldering wire rack in one, durable, avoid burns.
9. Smoking apparatus uses a 10mm thickened +5mm double activated carbon filter, and the powerful fan can smoke quickly. Plus the Angle of the smoking plate can be adjusted and the baffle on both sides allows the wind to concentrate, The filtration effect is strong, which can effectively absorb and filter smoke, providing a healthier and more comfortable smoking experience.
10. The machine is also equipped with universal clamps for holding the circuit board and assisting the soldering iron in welding. It can flexibly adjust the Angle for better operation during welding.
Parameters
| Model: | 948D+ |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 115W |
| Weight: | 1.8kg |
| Inner box size: | 250*250*130mm |
| Packing quantity: | 12 pieces / box |
| Outer packing size: | 515*515*425mm |
| Soldering iron | |
| Working voltage: | 24V/AC |
| Rated power: | 25W |
| Power consumption: | 110W |
| Maximum power: | 200W |
| Display form: | LED digital (Resolution 1℃) |
| Temperature range: | 200℃－480℃ |
| Heating element: | 948D+ ceramic heating core |
| Temperature stability: | ±2℃(no load) |
| Handle length: | About 100cm (Including handle line) |
| Smoking apparatus | |
| Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 5W |
| Type of air flow: | Powerful fan |
| Filter unit: | 10mm + 5mm Double activated carbon filter |
Standard Configuration
Host machine: 1 pcs
Soldering iron handle (include Iron tip and Heater): 1 pcs
Soldering iron holder (include Iron tip polishing box containing rosin and Soldering wire rack): 1 pcs
10mm thick front end filter: 4 pcs
5mm thick rear end filter: 4 pcs
Universal clamp: 1 pcs
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for relatively larger solder joints or pads to provide enough heat for better completion of welding operations.
2. For thicker and larger solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.
About the Smoking apparatus
Powerful fans and dual filters are used to quickly smoke and filter out harmful substances in the smoke, so as to minimize the harm of harmful smoke generated in the welding process and achieve a more comfortable and healthy welding experience.
1. Smoking apparatus is a very practical welding auxiliary equipment, which can significantly reduce the harm of harmful smoke during welding, while providing a more comfortable and healthy welding experience.
2. For users engaged in welding work, the use of smoking apparatus is a necessary protective measure and a guarantee for their own health.
Related Names
Low Temperature Lead Free Soldering Tool | Electronics Soldering Device | Thermostat Soldering Station
Additional information
| Weight | 2 kg |
|---|---|
| Rated Voltage | 110V, 220V |
| Power Plug | CN, EU, UK, US |
