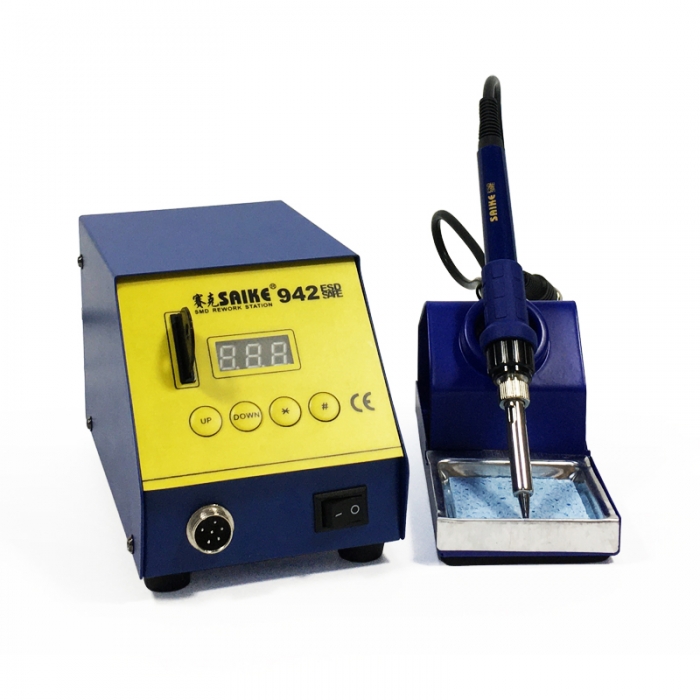

SAIKE 942 60W Soldering station
$78.00
Description
Features
1. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.
3. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Soldering station has a sleep function (which can be turned on or off) for a preset time of 1 to 99 minutes. When no one is in use, the soldering iron is in a quiescent state, and when the preset time is reached, the soldering iron will go to sleep.
5. Soldering station has the automatic shutdown function. When the soldering iron enters the dormancy state for 1 to 99 minutes (the time range can be set), the soldering station will automatically shut down and display “–“, and the heating will resume after restarting the power supply.
6. Soldering station has the card lock function, enter the function parameters to set, the card key must be inserted into the jack, otherwise the parameters cannot be changed. This design is designed to prevent unauthorized operators from changing parameters, thus ensuring that operational efficiency is not affected. With the card lock function, the soldering station provides a higher level of safety and operational control.
7. Soldering iron uses 131A ceramic heating core, peak heating, rapid heating, and fast temperature compensation function. Therefore, it is very suitable for the diswelding of various solder joints, especially for the diswelding of large solder joints, rough blocks and miscellaneous difficult solder joints.
8. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
9. Using Ferro-alloy Soldering iron seat, durable, avoid burns.
Parameters
| Model: | 942 |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 60W |
| Weight: | 2.65kg |
| Inner box size: | 273*235*130mm |
| Packing quantity: | 8 pieces / box |
| Outer packing size: | 565*485*290mm |
| Soldering iron | |
| Working voltage: | 24V/AC |
| Rated power: | 22W |
| Power consumption: | 60W |
| Maximum power: | 120W |
| Display form: | LED digital (Resolution 1℃) |
| Temperature range: | 200℃－480℃ |
| Heating element: | 131A ceramic heating core |
| Temperature stability: | ±2℃(no load) |
| Handle length: | About 100cm (Including handle line) |
Standard Configuration
Host machine: 1 pcs
Soldering iron handle (include iron tip and heater): 1 pcs
Soldering iron holder (include Cleaning sponge): 1 pcs
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for relatively larger solder joints or pads to provide enough heat for better completion of welding operations.
2. For thicker and larger solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.
Related Names
Digital Soldering Equipment | Heavy Duty Soldering Iron | Corded Desoldering Iron
Additional information
| Weight | 3 kg |
|---|---|
| Rated Voltage | 220V, 110V |
| Power Plug | US, UK, EU, CN |
