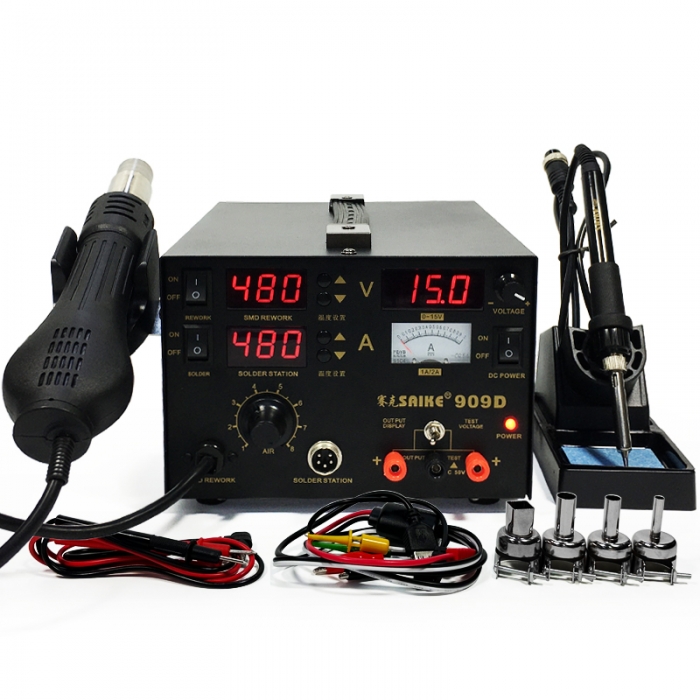

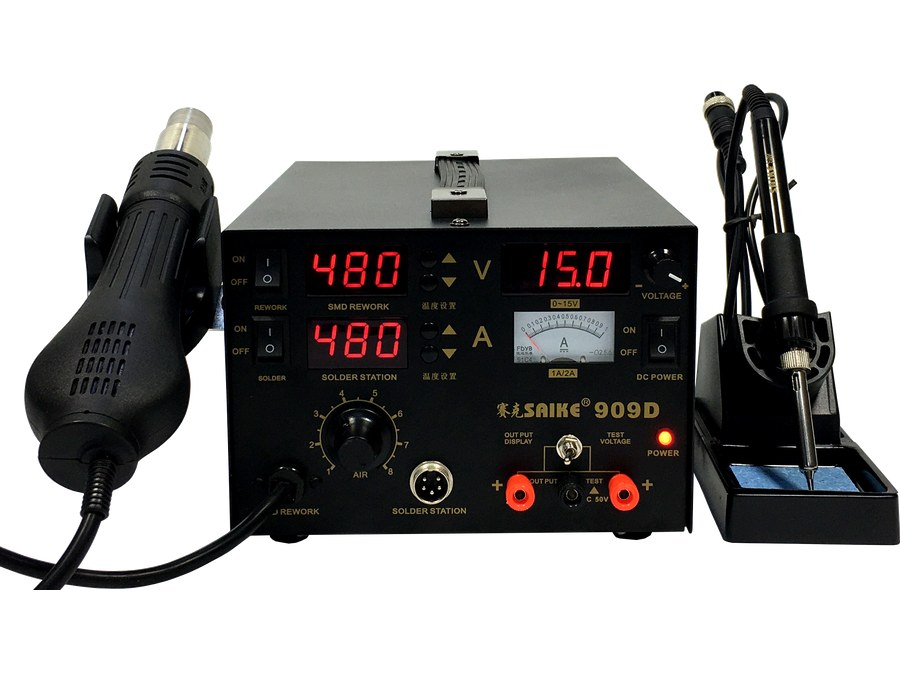

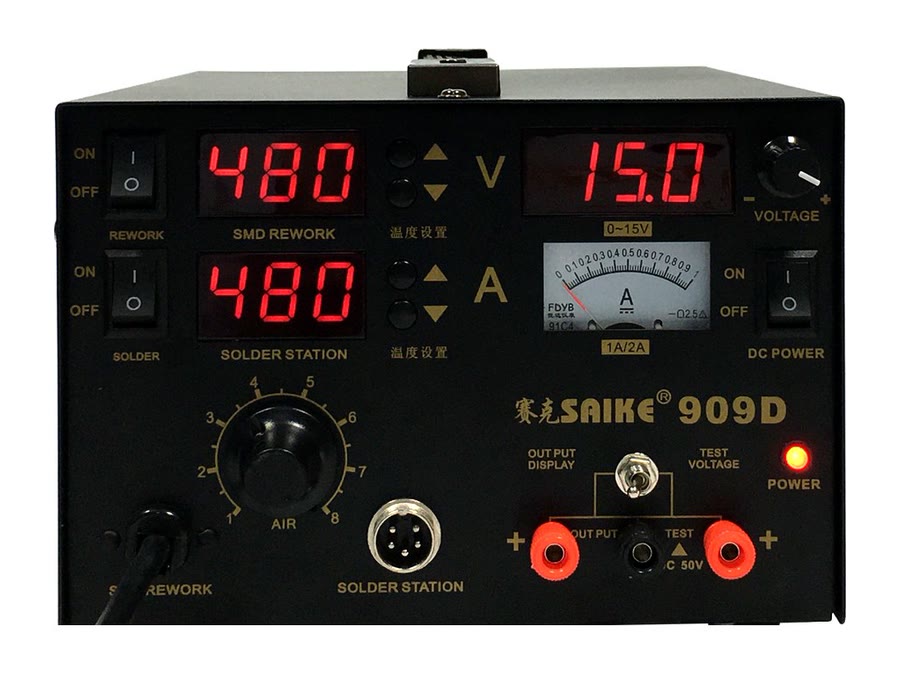

SAIKE 909D Hot air soldering station with DC Power Supply 15V 1A

$105.00

Categories: SKU: saike-909D

Description

Features
1. This product is a three-in-one multifunctional equipment designed according to the needs of the market. It integrates hot air gun, soldering iron and DC regulated power supply. It has comprehensive functions and provides simple and convenient maintenance experience at any time. The three functions also have independent switches, which can be used separately or simultaneously. It occupies less work surface, practical and saves power, further improves performance.
2. Each part of the equipment adopts an independent microcontroller, the hot air gun, the soldering iron and the DC voltage regulator power supply work independently, even if there is a problem in one way, it does not affect the normal work of the other way, and the high integrated circuit design greatly reduces the failure rate of the product.
3. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the hot air gun and soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
4. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.

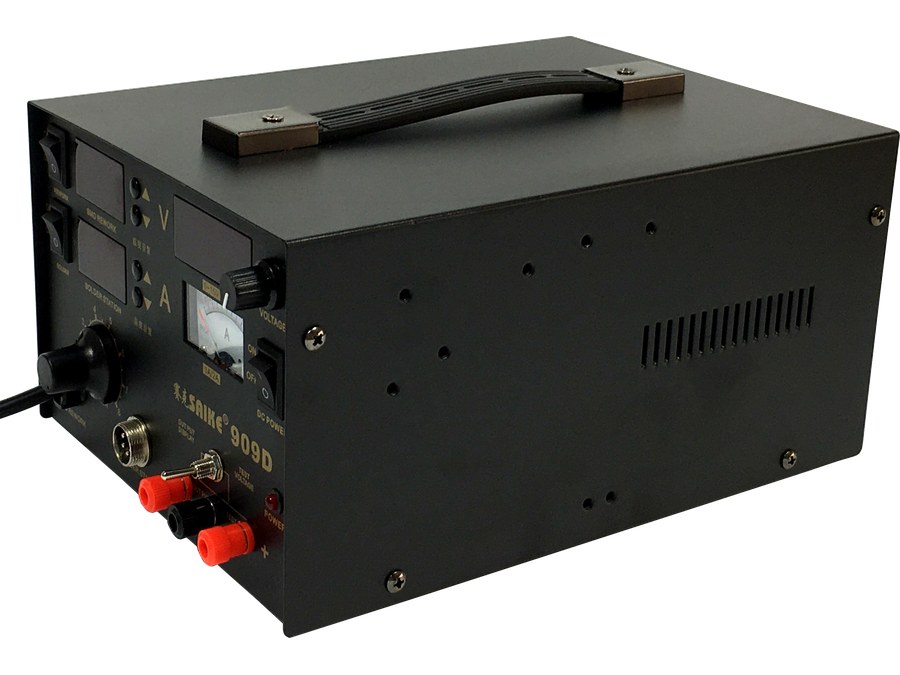

5. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
6. Hot air gun heater adopts the skeleton type ceramic heating core, and the high-quality production process significantly improves the reliability and stability, and increases the working life.
7. The handle of the Hot air gun is equipped with an induction device, as long as the handle is picked up from the handle frame, the Hot air gun can quickly enter the working state; Put the handle back on the handle frame, the Hot air gun will stop heating, delay blowing cold air to cool down, and finally enter the standby state; Convenient real-time operation, while extending the service life of the heater.
8. Hot air gun uses a brushless fan as the air source, air volume is large, air volume is adjustable, gentle wind power and minimal noise.

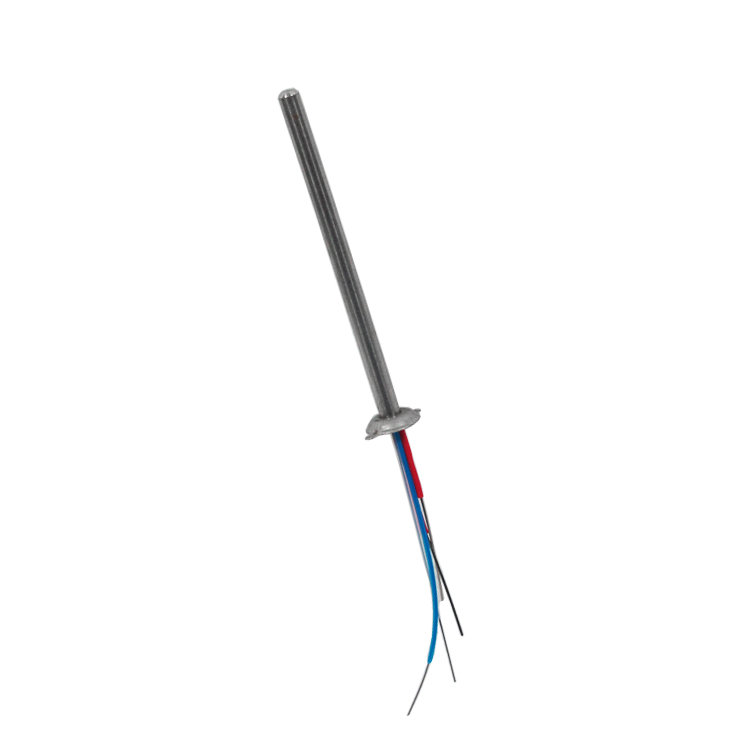

9. Soldering iron uses 132A ceramic heating core, stable heating, rapid warming, reduce loss, long service life.
10. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
11. DC regulated power supply part is equipped with continuous short-circuit protection and recovery function to avoid all kinds of unexpected interference burning load phenomenon.
12. DC regulated voltage power supply can output or measure DC voltage, not only as a mobile phone repair power supply, but also can be used to check and repair other electronic circuits or components.

Parameters

Model:  909D
Input voltage:  220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Power consumption:  760W
Weight:  4.21kg
Inner box size:  320*270*200mm
Packing quantity:  4 Piece / boxes
Outer packing size:  560*345*37mm
Hot air gun
Working voltage:  220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Power dissipation:  700W
Display form:  LED digital (Resolution 1℃)
Heating element:  Skeleton type ceramic heating core
Temperature range:  100℃-480℃
Temperature stability:  ±1℃
Type of air flow:  Brushless fan soft wind
Gas flow:  120 L/min(max)
Noise:  Less than 45dB
Handle length:  About 100cm(Including handle line)
Soldering iron
Working voltage:  24V/AC
Power consumption:  45W
Display form:  LED digital (Resolution 1℃)
Heating element:  132A ceramic heating core
Temperature range:  200℃-480℃
Temperature stability:  ±2℃(no load)
Handle length:  About 100cm(Including handle line)
DC regulated power supply
Working voltage:  220V~240V/AC, 50Hz  (110V/AC, 60Hz)
Power consumption:  15W
Output voltage:  0-15V
Load current:  0-1A

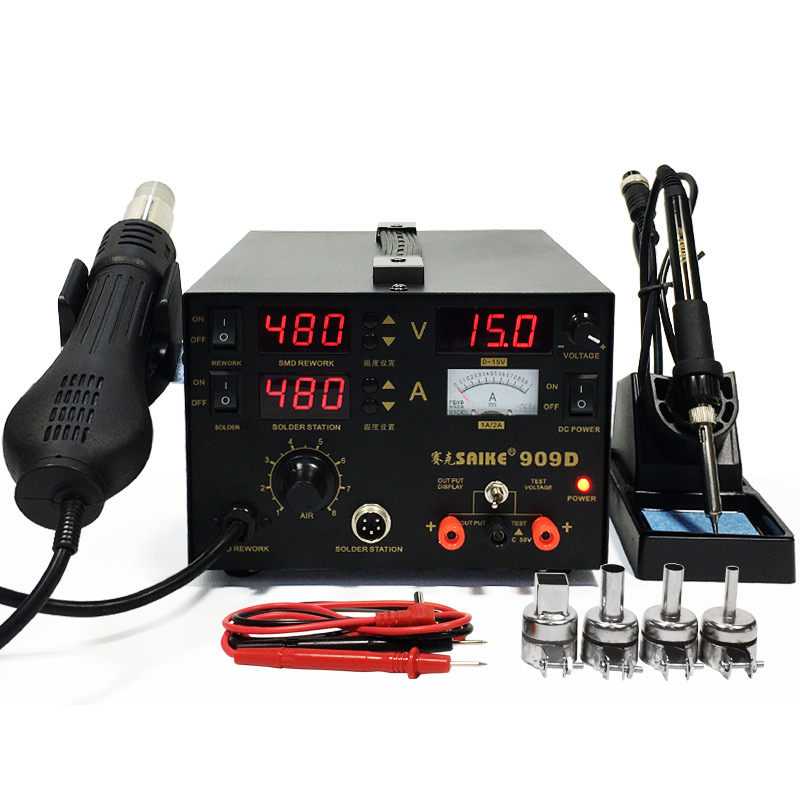

Standard Configuration

Host machine (include Hor air gun handle): 1 pcs
Hot air gun rack: 1 pcs

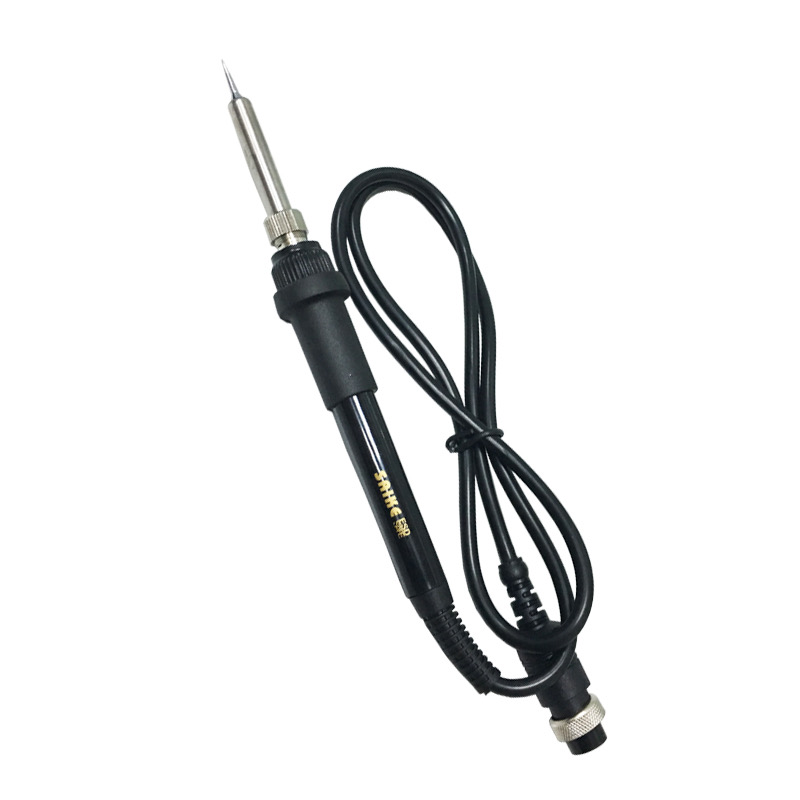

Soldering iron handle (include iron tip and heater): 1 pcs
Soldering iron holder (include Cleaning sponge): 1 pcs
Nozzles: 4 pcs (5mm, 8mm, 10mm, 12*12mm)
Power supply interface Test cable: 1 pcs
Multimeter pen: 1 pcs
User manual: 1 pcs

Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions

About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.

About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for small solder joints or pads, such as thinner, smaller welding materials, no surrounding metal and other heat-absorbing parts.
2. For relatively thick and large solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.

About DC regulated power supply
By output and to measure dc voltage, measurement and fault diagnosis of electronic components.
1. Dc voltage regulator power supply can provide reliable DC voltage for circuit boards and electronic devices to ensure their normal operation and stability, so as to facilitate debugging, testing or repair and other fault judgment.

Related Names
Hot Air Gun Soldering Station | PCB Repair Kit | Precision Soldering Equipment

Additional information

Weight 5 kg
Rated Voltage

110V, 220V

Power Plug

CN, EU, UK, US
