SAIKE 863-30 Hot air soldering station with DC Power Supply 30V 5A
$470.00
Description
Features

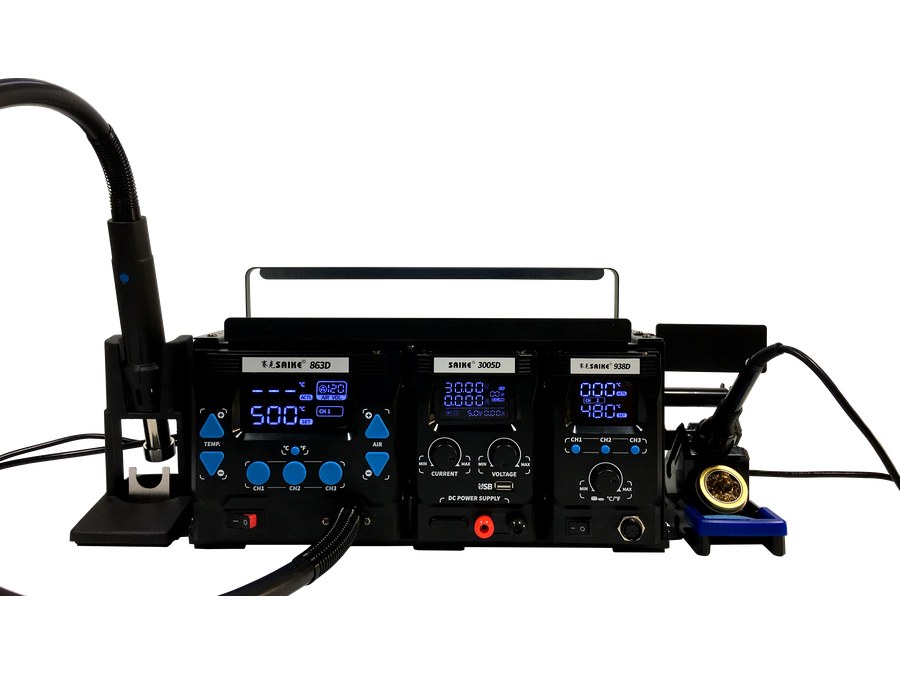

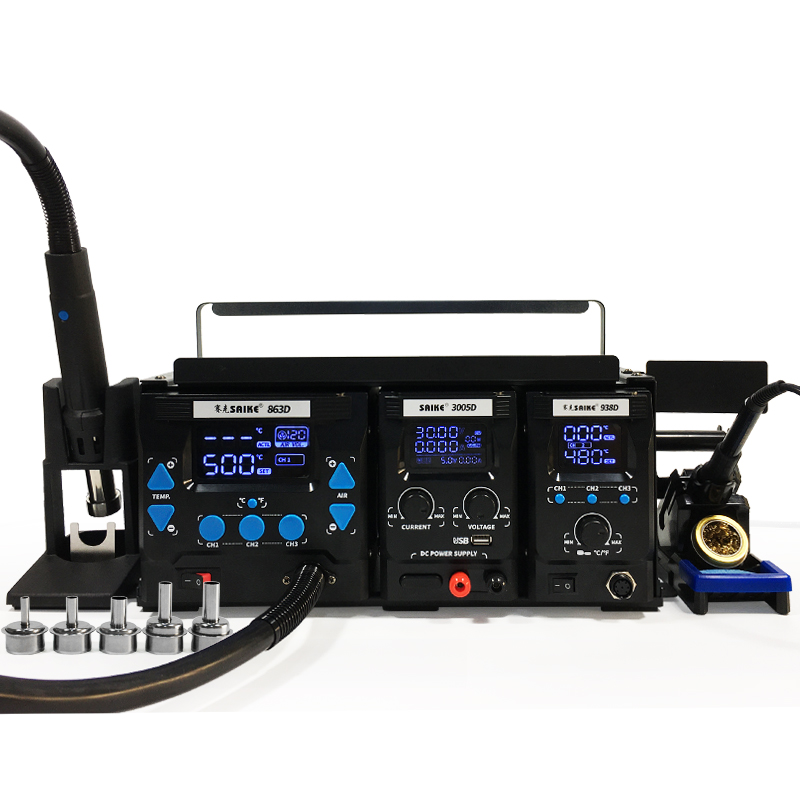

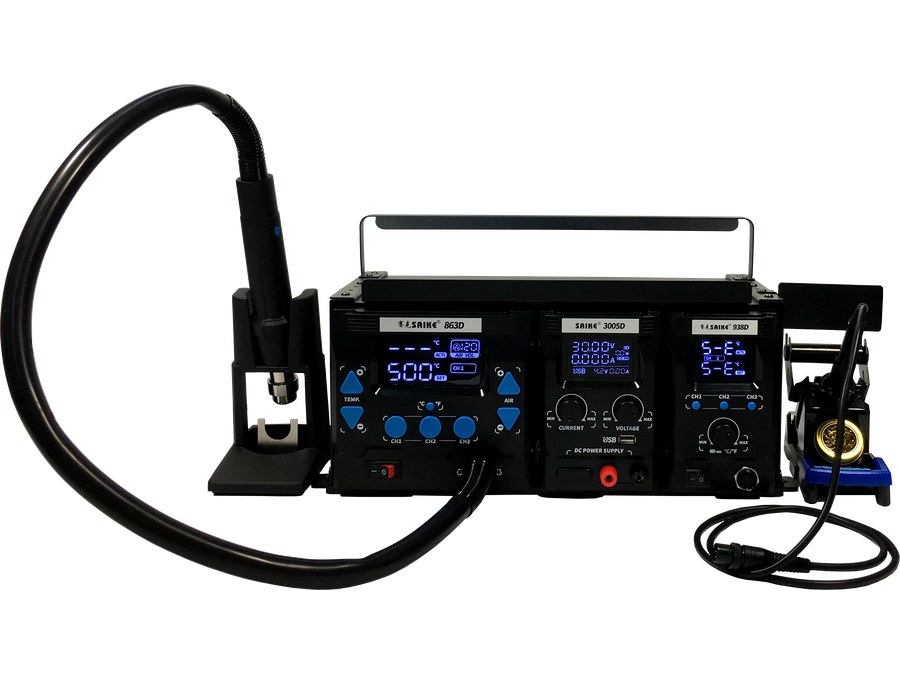

1. This product is a three-in-one multi-functional combination equipment specially designed according to the needs of the market. It integrates 863D hot air rework table, 938D Soldering station and 3005D Dc regulated power supply. It has comprehensive functions and provides simple and convenient maintenance experience at any time. The three devices operate independently and can be used separately or simultaneously, which greatly improves work efficiency. Its professional, easy to operate, suitable for various maintenance occasions.
2. Each part of the equipment works independently, even if one part has problems, it does not affect the normal work of the other part, and the combined design greatly reduces the failure rate of the product.
3. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the hot air gun and soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
4. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.

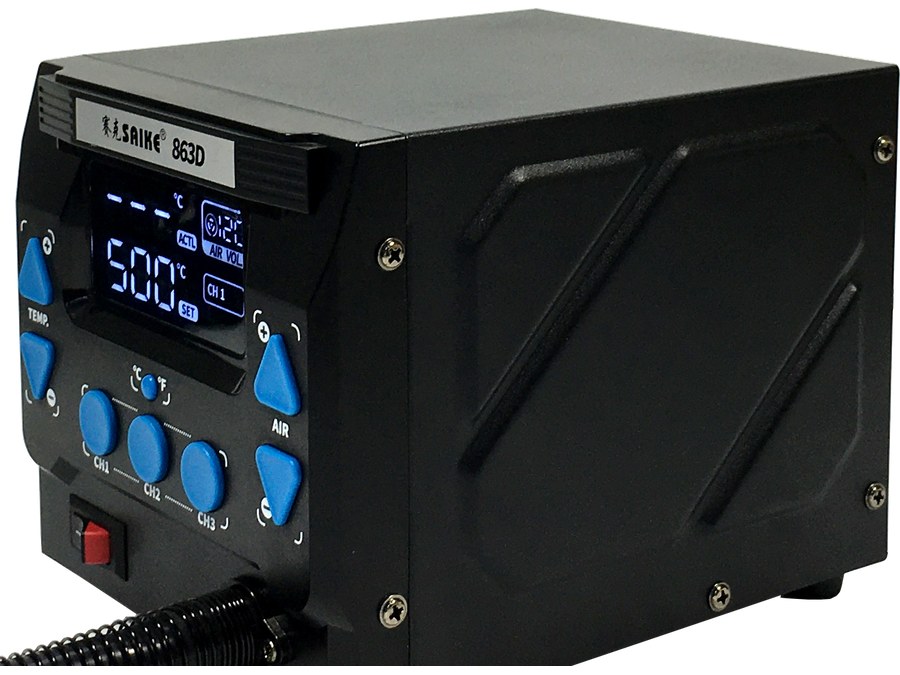

5. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
6. Hot air gun heater uses a higher level of hot air technology, which can quickly heat the welding point in a short time, so that it can achieve the ideal welding effect. At the same time, its powerful wind system can effectively protect the circuit board and components to prevent overheating.
7. The handle of the Hot air gun is equipped with an induction device, as long as the handle is picked up from the handle frame, the Hot air gun can quickly enter the working state; Put the handle back on the handle frame, the Hot air gun will stop heating, delay blowing cold air to cool down, and finally enter the standby state; Convenient real-time operation, while extending the service life of the heater.
8. Hot air gun handle comes with a one-click switch between cold air, hot air, and standby. Hold the handle and press the switch on the handle to switch the cold air or hot air mode. Press the switch for about two seconds, and the hot air gun will start to cool down and finally enter the standby state. Press the switch again for about two seconds, and the hot air gun will restart and enter the working state.
9. Hot air gun adopts the compressed motor blower as the air source, which has strong wind pressure, high air volume, adjustable air volume and low noise.

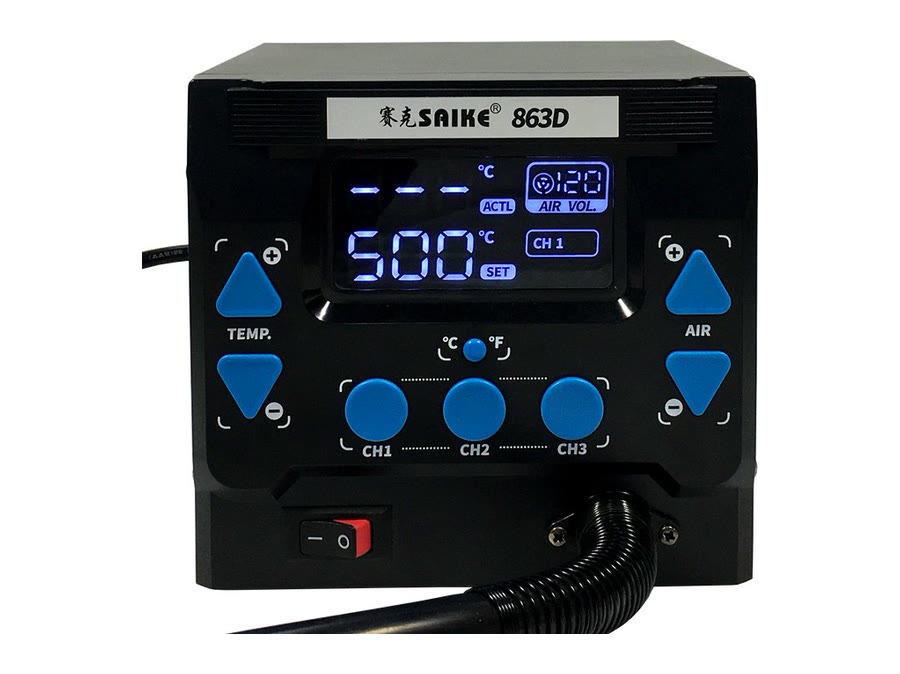

10. Hot air gun has three storage channel buttons, which can store three different temperatures and air volumes. In actual use, you can quickly switch to the specified temperature and air volume through the storage button, so as to quickly enter the working state. This design can greatly improve the work efficiency, while reducing the operation time, to avoid wasting time due to cumbersome operations.
11. Soldering iron uses the specially built 938D ceramic heating core, which is more powerful and has high efficiency and temperature compensation speed, and can complete the welding task quickly and accurately. Therefore, it is very suitable for the diswelding of various solder joints, especially for the diswelding of large solder joints, rough blocks and miscellaneous difficult solder joints.
12. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
13. Soldering iron has three storage channel keys, which can store three different temperatures. In actual use, you can quickly switch to the specified temperature through the storage button, so as to quickly enter the working state. This design can greatly improve the work efficiency, while reducing the operation time, to avoid wasting time due to cumbersome operations.
14. Soldering iron has a 10-minute fixed hibernation function. When no one is in use, the soldering iron is at rest. After about 10 minutes, the soldering iron will enter the hibernation state.
15. Using Ferro-alloy Soldering iron seat, durable, avoid burns.
16. DC regulated voltage power with constant voltage or constant current automatic conversion function, with the load changes between constant voltage and constant current state automatically switch.
17. DC regulated voltage power has perfect short circuit protection, over current protection, over temperature protection design. There are two modes of over-current turn-off and constant current protection, which are suitable for a wider range of loads and avoid all kinds of unexpected interference and burning load phenomena.
18. DC voltage regulator power supply can output DC voltage, high voltage stability, strong load capacity, not only can be used as a mobile phone maintenance power supply, but also can be used to check and repair other electronic circuits or components.
19. DC voltage regulator power supply specific 0-30V and 0-5V two voltage gear, only need to long press the voltage adjustment knob for about 1 second, you can switch the voltage output gear.
20. At the same time, it also has USB fast charging function, support QC2.0, QC3.0 fast charging protocol, easy to connect mobile phones and other communication devices. At the same time, the USB interface has a separate voltage and current display window, the current accuracy is 3 digits, and the output current display is accurate to 10mA, which further meets the needs of users.
Parameters
Model: | 863-30 |
Input voltage: | 220V~240V/AC, 50Hz |
Power consumption: | 1270W |
Weight: | 13.65kg |
Inner box size: | 555*550*20mm |
Packing quantity: | 1 Piece / boxes |
Outer packing size: | 555*550*20mm |
Hot air gun (863D) | |
Working voltage: | 220V~240V/AC, 50Hz |
Power dissipation: | 1000W |
Display form: | LED digital (Resolution 1℃) |
Heating element: | Skeleton type ceramic heating core |
Temperature range: | 100℃-500℃ |
Temperature stability: | ±1℃ |
Type of air flow: | Compressor Motor (Blower) |
Gas flow: | 120 L/min(max) |
Noise: | Less than 45dB |
Handle length: | About 100cm(Including handle line) |
Soldering iron (938D) | |
Working voltage: | 24V/AC |
Rated power: | 24W |
Power consumption: | 85W |
Maximum power: | 120W |
Display form: | LED digital (Resolution 1℃) |
Heating element: | 938D ceramic heating core |
Temperature range: | 200℃-480℃ |
Temperature stability: | ±2℃(no load) |
Handle length: | About 100cm(Including handle line) |
DC regulated power supply (3005D) | |
Working voltage: | 220V~240V/AC, 50Hz |
Power consumption: | 150W |
Output voltage: | 0-30V |
Load current: | 0-5A |
Standard Configuration
863D Host machine (include Hor air gun handle): 1 pcs
938D Host machine: 1 pcs
3005D Host machine: 1 pcs
Composite frame: 1 pcs
Hot air gun Holder: 1 pcs

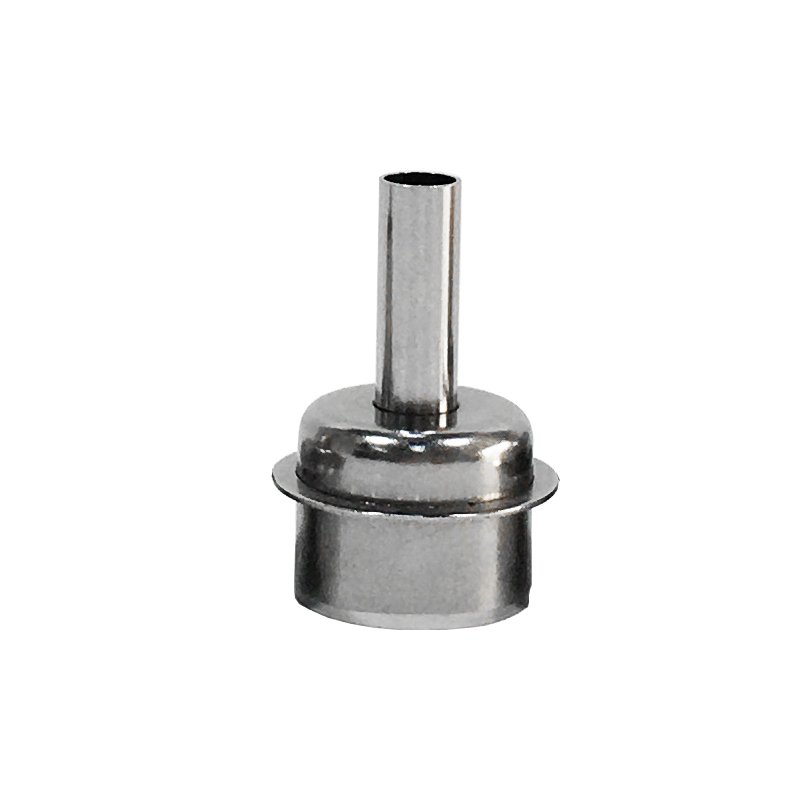

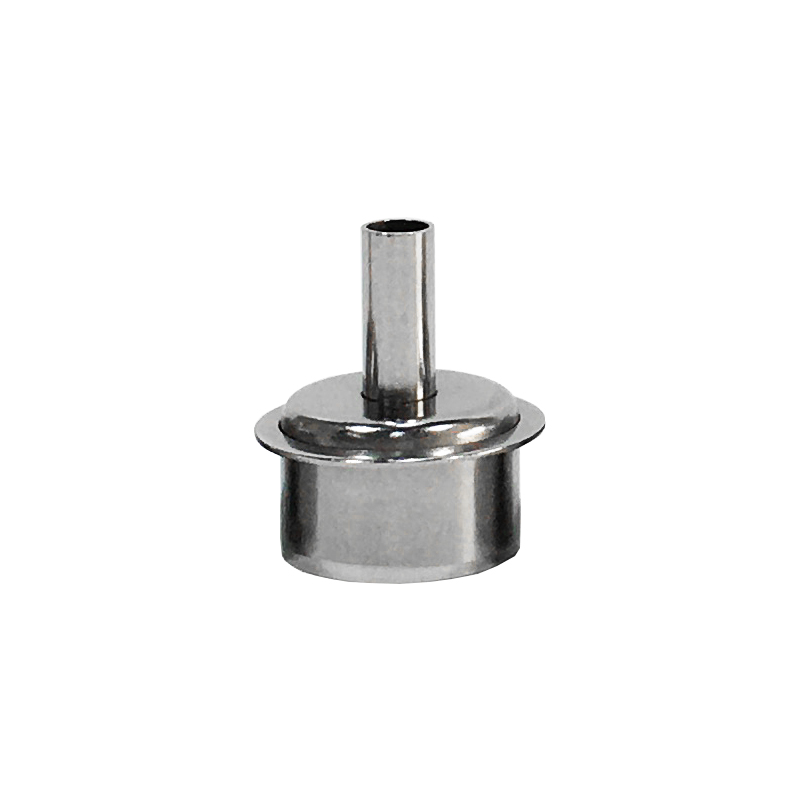

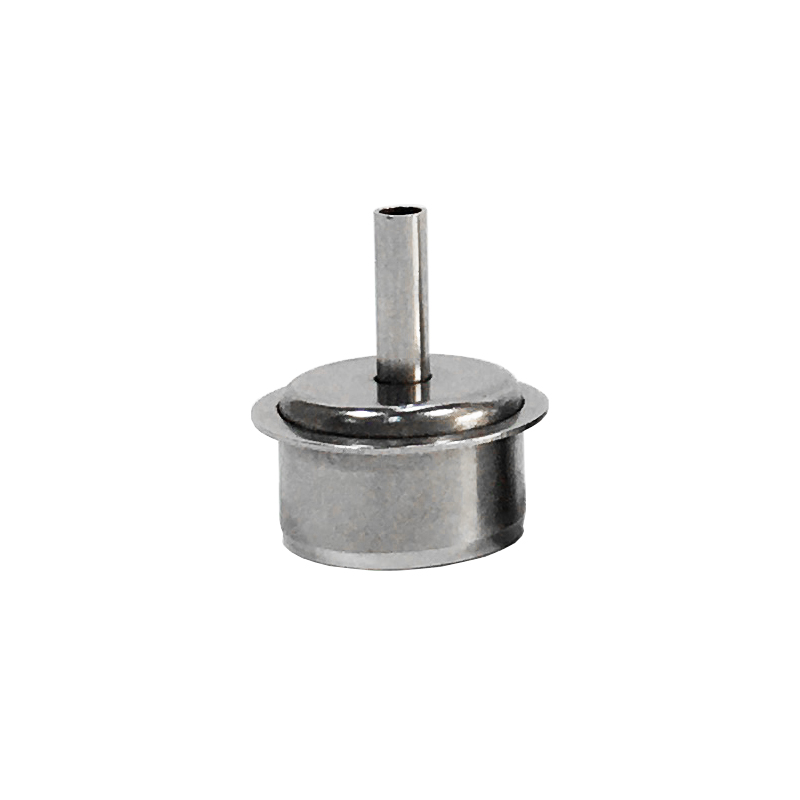

Nozzles: 3 pcs (5mm, 8mm, 10mm) Straight air outlet, 2 pcs (8mm, 10mm) Spiral air outlet.

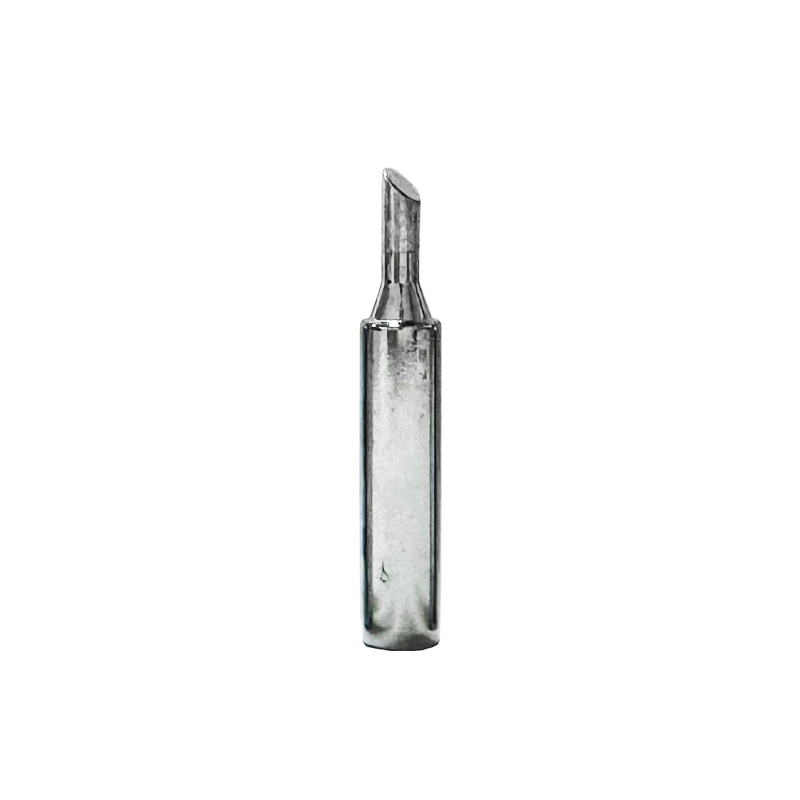

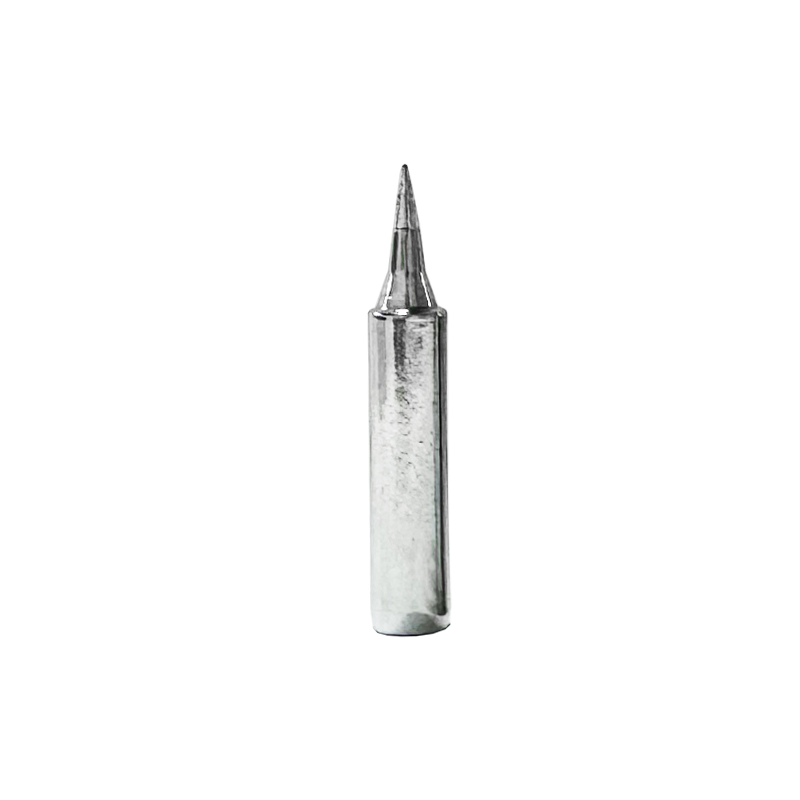

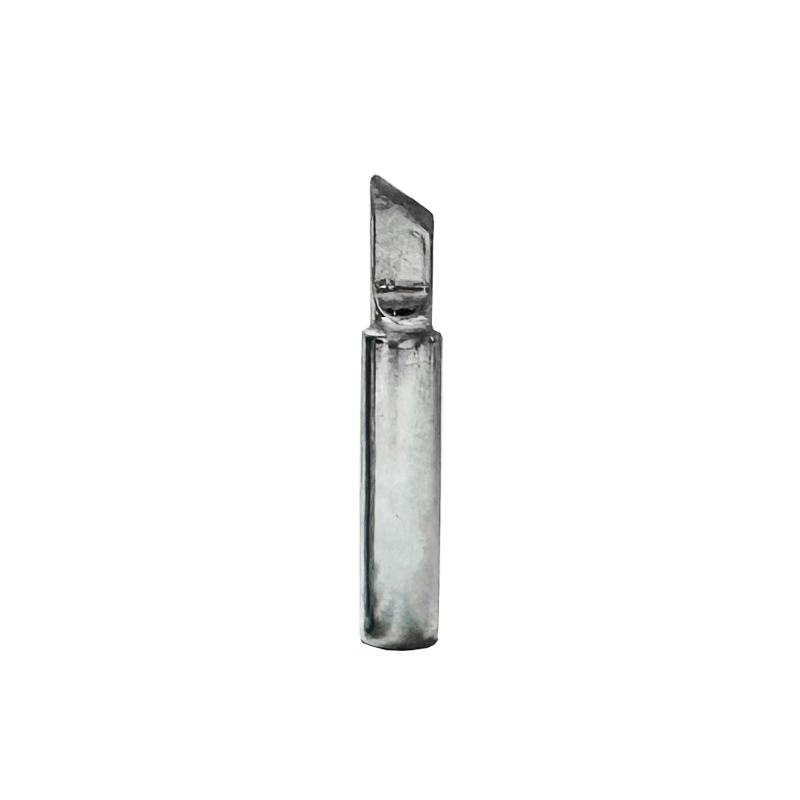

Soldering iron handle (include iron tip and heater): 1 pcs
Soldering iron holder (include Cleaning sponge, Iron tip polishing box with rosin): 1 pcs

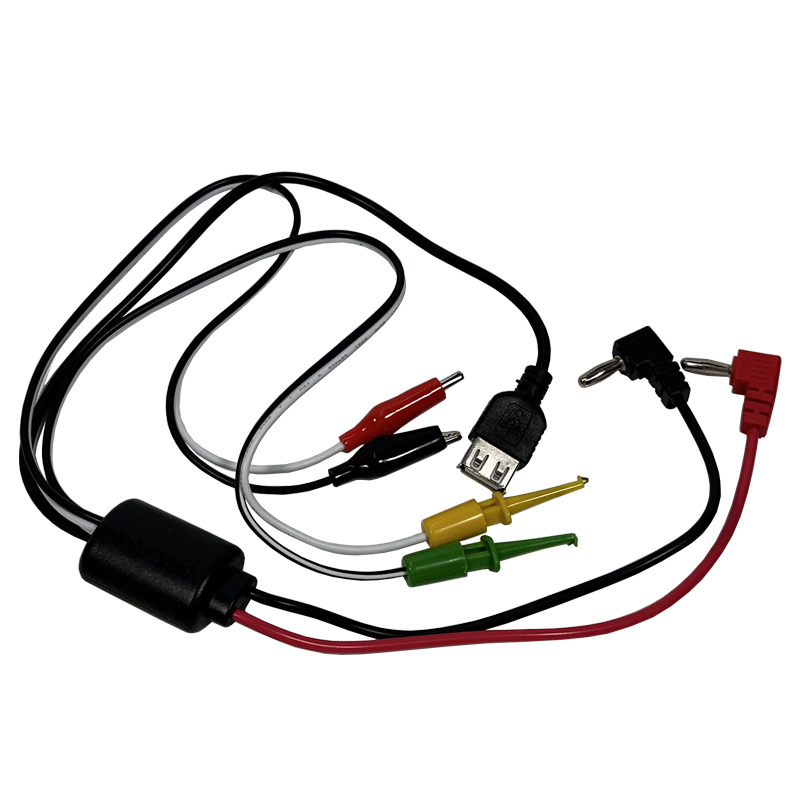

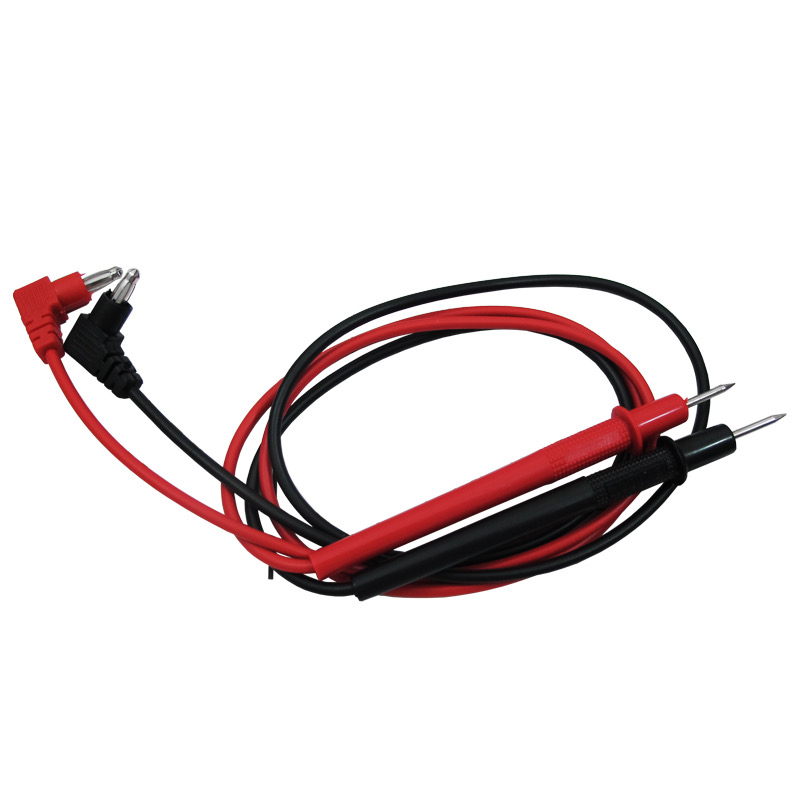

Power supply interface output cable: 1 pcs
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.
About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for larger solder joints or pads to provide enough heat for better completion of welding operations.
2. For super thicker and super larger solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.
About DC regulated power supply
By output dc voltage, measurement and fault diagnosis of electronic components.
1. Dc voltage regulator power supply can provide reliable DC voltage for circuit boards and electronic devices to ensure their normal operation and stability, so as to facilitate debugging, testing or repair and other fault judgment.
Related Names
Hot Air Gun Soldering Station | PCB Repair Kit | Precision Soldering Equipment
Additional information
Weight | 14 kg |
---|---|
Rated Voltage | 220V |
Power Plug | CN, EU, UK |
