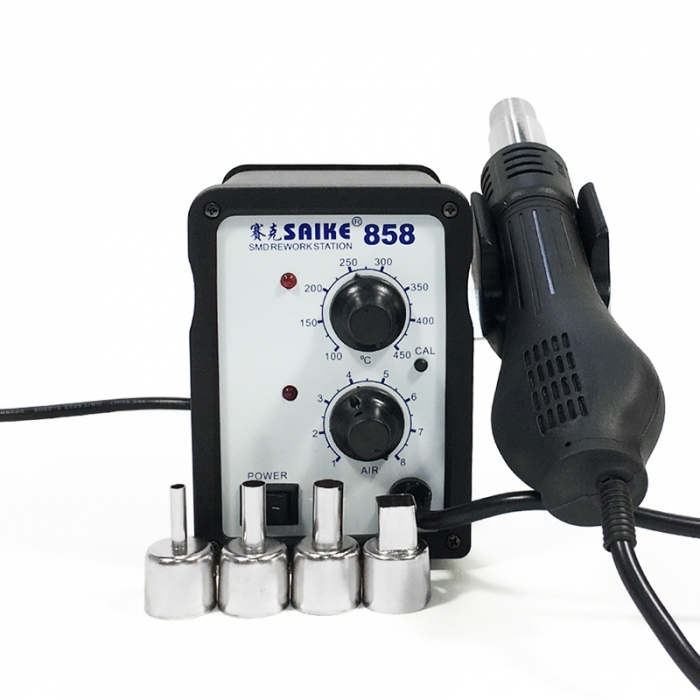

SAIKE 858 Hot air gun rework station
$48.00
Description
Features
1.Using microcomputer processor PID program control technology, the program tracks the actual temperature of the hot air gun at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. The machine has self-detection function, and the intelligent overtemperature, short circuit, open circuit and overload fault are displayed and protected.
3. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Hot air gun heater adopts the skeleton type ceramic heating core, and the high-quality production process significantly improves the reliability and stability, and increases the working life.
5. The handle of the Hot air gun is equipped with an induction device, as long as the handle is picked up from the handle frame, the Hot air gun can quickly enter the working state; Put the handle back on the handle frame, the Hot air gun will stop heating, delay blowing cold air to cool down, and finally enter the standby state; Convenient real-time operation, while extending the service life of the heater.
6. Hot air gun uses a brushless fan as the air source, air volume is large, air volume is adjustable, gentle wind power and minimal noise.
Parameters
| Model: | 858 |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 700W |
| Weight: | 1.72kg |
| Inner box size: | 260*166*155mm |
| Packing quantity: | 12 pieces / box |
| Outer packing size: | 540*350*480mm |
| Hot air gun | |
| Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 700W |
| Display form: | Scale indication (LED heating indicator) |
| Heating element: | Skeleton type ceramic heating core |
| Temperature range: | 100℃－450℃ |
| Temperature stability: | ±1℃ |
| Type of air flow: | Brushless fan soft wind |
| Gas flow: | 120 L/min(max) |
| Noise: | Less than 45dB |
| Handle length: | About 100cm(Including handle line) |
Standard Configuration
Host machine (include Hor air gun handle): 1 pcs
Hot air gun rack: 1 pcs
Nozzles: 4 pcs (5mm, 8mm, 10mm, 12*12mm)
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.
Related Names
BGA Rework Equipment | China Desoldering Station | Variable Temperature Soldering Station
Additional information
| Weight | 2 kg |
|---|---|
| Rated Voltage | 110V, 220V |
| Power Plug | CN, EU, UK, US |
