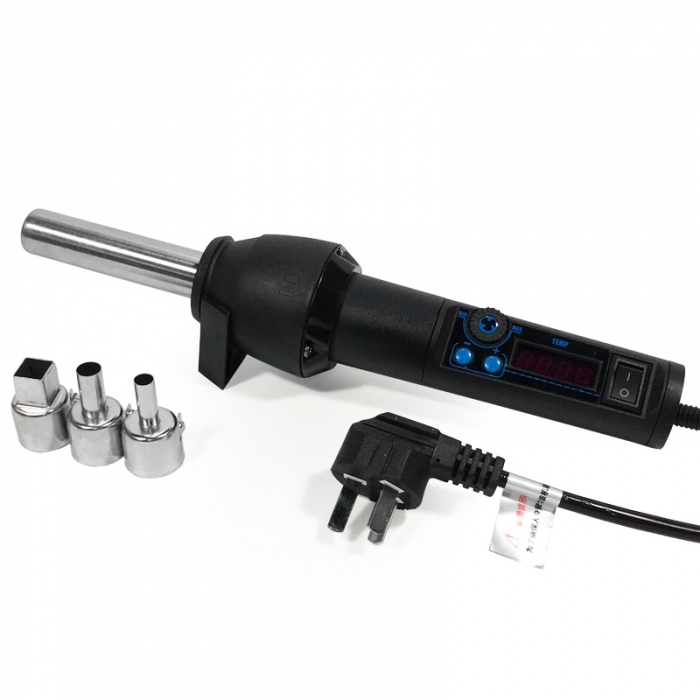

SAIKE 8058 Portable Hot air gun rework station
$60.00
Description
Features
1. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the hot air gun at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. The machine has self-detection function, and the intelligent overtemperature, short circuit, open circuit and overload fault are displayed and protected.
3. The machine is connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Machine portable design, small size, light weight, easy to carry, simple operation.
5. Hot air gun heater adopts the skeleton type ceramic heating core, and the high-quality production process significantly improves the reliability and stability, and increases the working life.
6. Hot air gun has the function of delay blowing cold air and automatic cooling. When the hot air gun switch is turned off, the hot air gun will stop heating. If the temperature is too high, the cold air will delay closing. It stops blowing after the temperature drops, thus extending the service life of the hot air gun.
7. Hot air gun adopts the blower as the air source, which has strong wind pressure, high air volume, adjustable air volume and low noise.
Parameters
Model: | 8058 |
Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
Power consumption: | 650W |
Weight: | 0.63kg |
Inner box size: | 365*132*67mm |
Packing quantity: | 24 pieces / box |
Outer packing size: | 500*350*440mm |
Hot air gun | |
Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
Power consumption: | 650W |
Display form: | LED digital (Resolution 1℃) |
Heating element: | Skeleton type ceramic heating core |
Temperature range: | 100℃-480℃ |
Temperature stability: | ±1℃ |
Type of air flow: | Blower |
Gas flow: | 120 L/min(max) |
Noise: | Less than 45dB |
Handle length: | About 140cm(Including handle line) |
Standard Configuration
Host machine (include Hor air gun handle): 1 pcs
Hot air gun rack: 1 pcs
Nozzles: 3 pcs (8mm, 10mm, 12*12mm)
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.
Related Names
BGA Rework Equipment | China Desoldering Station | Variable Temperature Soldering Station
Additional information
Weight | 1 kg |
---|---|
Rated Voltage | 110V, 220V |
Power Plug | CN, EU, UK, US |
