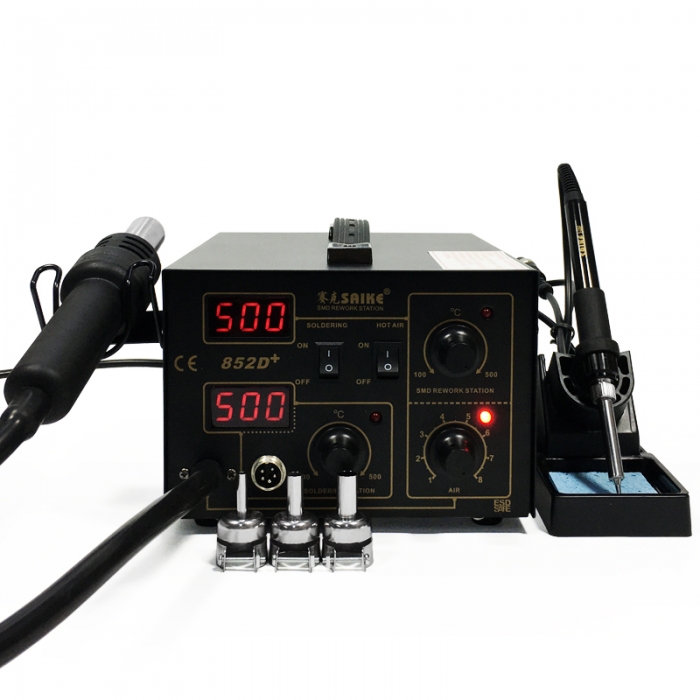

SAIKE 852D+ Hot air soldering station Air pump type
$84.00
Description
Features
1. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the hot air gun and soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.
3. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Hot air gun heater adopts the skeleton type ceramic heating core, and the high-quality production process significantly improves the reliability and stability, and increases the working life.
5. Hot air gun has the function of delay blowing cold air and automatic cooling. When the hot air gun switch is turned off, the hot air gun will stop heating. If the temperature is too high, the cold air will delay closing. It stops blowing after the temperature drops, thus extending the service life of the hot air gun.
6. Hot air gun uses the air pump as the air source, the air flow pressure is large, and the silencer box is attached to reduce the noise.
7. Soldering iron uses 132A ceramic heating core, stable heating, rapid warming, reduce loss, long service life.
8. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
Note: Before using the new machine for the first time, please remove the air pump lock screw at the bottom of the main engine before using it. This is to prevent the air pump from shaking off during transportation, and smashing the internal circuit, so the bottom is locked by the screw, and it needs to be removed when used, so that the air pump can operate normally. Otherwise, the air pump can not vibrate normally, resulting in great noise and damage to the machine.
Parameters
| Model: | 852D+ (Air pump type) |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 660W |
| Weight: | 4.18kg |
| Inner box size: | 330*274*204mm |
| Packing quantity: | 4 pieces / box |
| Outer packing size: | 560*345*370mm |
| Hot air gun | |
| Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 600W |
| Display form: | LED digital (Resolution 1℃) |
| Heating element: | Skeleton type ceramic heating core |
| Temperature range: | 100℃－500℃ |
| Temperature stability: | ±1℃ |
| Type of air flow: | Air pump |
| Gas flow: | 24 L/min(max) |
| Noise: | Less than 45dB |
| Handle length: | About 100cm(Including handle line) |
| Soldering iron | |
| Working voltage: | 24V/AC |
| Power consumption: | 40W |
| Display form: | LED digital (Resolution 1℃) |
| Temperature range: | 200℃－500℃ |
| Heating element: | 132A ceramic heating core |
| Temperature stability: | ±2℃(no load) |
| Handle length: | About 100cm(Including handle line) |
Standard Configuration
Host machine (include Hor air gun handle): 1 pcs
Hot air gun rack: 1 pcs
Soldering iron handle (include iron tip and heater): 1 pcs
Soldering iron holder (include Cleaning sponge): 1 pcs
Nozzles: 3 pcs (5mm, 8mm, 10mm)
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.
About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for small solder joints or pads, such as thinner, smaller welding materials, no surrounding metal and other heat-absorbing parts.
2. For relatively thick and large solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.
