2 in 1 repair station

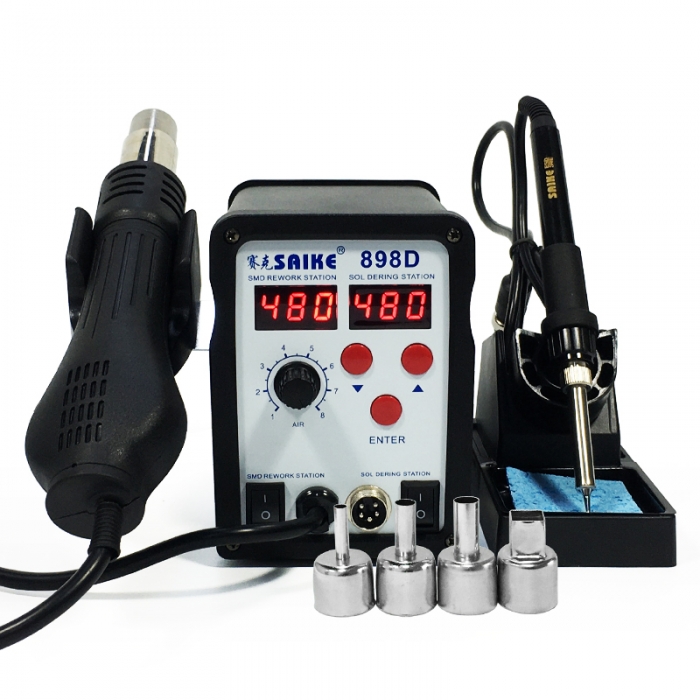

SAIKE 898D hot air soldering station for electronics repair
Hot air rework and soldering station for electronics repair benches, PCB maintenance, SMD work and daily service tasks.
Applications
Where this model fits
Choose the model by its rated output and the repair, testing or production tasks it needs to support.
Repair shops
For buyers who need one station to cover both hot air rework and soldering repair.
Phone and PCB repair
Useful for component removal, connector heating, solder joint repair and general maintenance.
Bulk orders
A familiar 2 in 1 model direction for distributor stocking and repair shop purchases.
Main functions
Functions for repair and testing
Review the main operating functions before checking the full technical specifications.
Hot air rework
The hot air function supports SMD removal, heat shrink work and board repair heating tasks.
Soldering function
The soldering iron supports touch-up soldering, wire work and common electronics maintenance.
Repair bench coverage
The 2 in 1 station helps buyers cover common repair tasks without selecting separate tools first.
Order details
Package and order details
Host machine, hot air handle, soldering iron, nozzle set, holder and power cord should be confirmed by voltage, plug type and order requirement.
Need SAIKE 898D Hot air soldering station for repair shop, distributor or bulk order?
Send model, voltage, plug type, quantity and destination country. We can help confirm package options and quotation details.
Product details
Features and specifications
Review the original feature descriptions and technical parameters before selecting a model or sending an inquiry.
Features
1. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the hot air gun and soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.
3. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Hot air gun heater adopts the skeleton type ceramic heating core, and the high-quality production process significantly improves the reliability and stability, and increases the working life.
5. The handle of the Hot air gun is equipped with an induction device, as long as the handle is picked up from the handle frame, the Hot air gun can quickly enter the working state; Put the handle back on the handle frame, the Hot air gun will stop heating, delay blowing cold air to cool down, and finally enter the standby state; Convenient real-time operation, while extending the service life of the heater.
6. Hot air gun uses a brushless fan as the air source, air volume is large, air volume is adjustable, gentle wind power and minimal noise.
7. Soldering iron uses 132A ceramic heating core, stable heating, rapid warming, reduce loss, long service life.
8. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
Parameters
| Model: | 898D |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 740W |
| Weight: | 2.53kg |
| Inner box size: | 260*166*155mm |
| Packing quantity: | 8 pieces / box |
| Outer packing size: | 570*360*320mm |
| Hot air gun | |
| Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 700W |
| Display form: | LED digital (Resolution 1℃) |
| Heating element: | Skeleton type ceramic heating core |
| Temperature range: | 100℃－480℃ |
| Temperature stability: | ±1℃ |
| Type of air flow: | Brushless fan soft wind |
| Gas flow: | 120 L/min(max) |
| Noise: | Less than 45dB |
| Handle length: | About 100cm(Including handle line) |
| Soldering iron | |
| Working voltage: | 24V/AC |
| Power consumption: | 40W |
| Display form: | LED digital (Resolution 1℃) |
| Temperature range: | 200℃－480℃ |
| Heating element: | 132A ceramic heating core |
| Temperature stability: | ±2℃(no load) |
| Handle length: | About 100cm(Including handle line) |
Standard Configuration
Host machine (include Hor air gun handle): 1 pcs
Hot air gun rack: 1 pcs
Soldering iron handle (include iron tip and heater): 1 pcs
Soldering iron holder (include Cleaning sponge): 1 pcs
Nozzles: 4 pcs (5mm, 8mm, 10mm, 12*12mm)
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the hot air gun
By generating a hot air flow, the solder is heated to a molten state, thus achieving welding, heat shrinkage, removal and other operations.
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components, such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. (especially suitable for mobile phone wiring and wiring base sealing-off).
2. Can also be used for heat shrinkage, drying, paint removal, adhesion removal, thawing, preheating, glue welding, etc.
About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for small solder joints or pads, such as thinner, smaller welding materials, no surrounding metal and other heat-absorbing parts.
2. For relatively thick and large solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.
Related Names
Fine Tip Soldering Iron Kit | PCB Components Soldering Station | Heat Gun Soldering Tool
Accessories
Accessories and spare parts
These items help buyers plan after-sales support, repair bench setup and restocking. Confirm compatibility by model before bulk order.
Available on request. Add the relevant items for spare-parts planning, accessory replacement or repair bench setup.
Replacement parts
- Hot air handle
- Soldering iron handle
- Hot air and soldering heating cores
- Common replacement parts
Working accessories
- Hot air nozzles
- Compatible soldering tips
- Holder and nozzle set by order requirement
Soldering bench consumables
- Solder wire
- Solder wick
- Cleaning sponge or brass wire
- Soldering tip refresher or repair box
