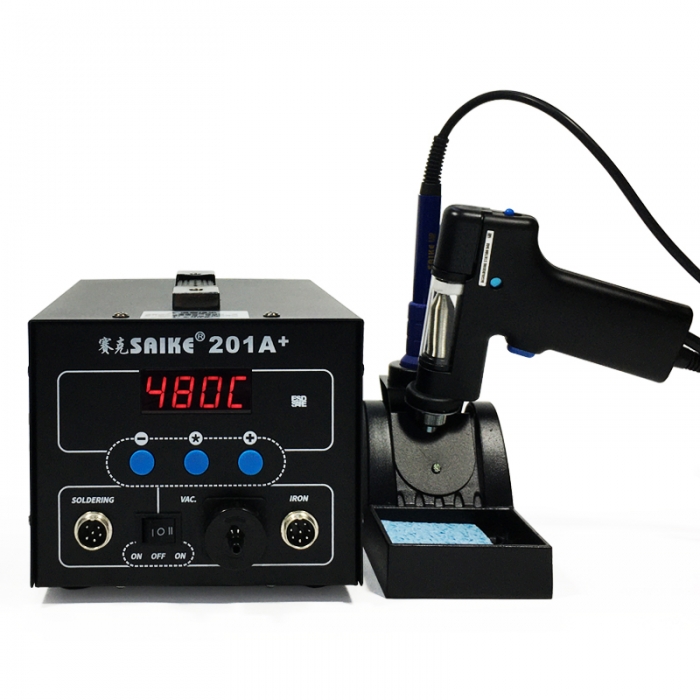

SAIKE 201A+ Suction tin gun Desoldering station with Soldering iron
$217.00
Description
Features
1. Using microcomputer processor PID program control technology, the program tracks the actual temperature of the suction tin gun and soldering iron at a high speed in milliseconds, the fast temperature compensation speed enhances the temperature stability, the temperature static error is small, the temperature compensation is fast, and can adapt to various harsh environments.
2. Various parts of machine device are have self-deteetion function, full intelligent over-temperature, short circuit, open circuit, overload failure have display and protection.
3. The back of the machine is provided with a fuse holder, and the exposed metal parts of each component are connected with a ground wire to provide comprehensive protection for the safety of electricity.
4. Suction tin gun adopts 201A suction tin gun ceramic heating core, which has peak heating, fast heating and fast temperature compensation functions, therefore very suitable for desoldering circuit boards, electronic components such as job need to remove and replace parts.
5. Suction tin gun uses vacuum pump as the air source, strong suction and low noise.
6. Suction tin gun part is anti-static design, to prevent electrostatic damage to delicate SMD components.
7. Suction tin gun and Soldering iron has a 10-minute fixed hibernation function. When no one is in use, the suction tin gun or soldering iron is at rest, After about 10 minutes, the suction tin gun or soldering iron will enter the hibernation state.
8. Suction tin gun and soldering iron can be used alternately by switching.
9. Soldering iron uses 131A ceramic heating core, peak heating, rapid heating, and fast temperature compensation function. Therefore, it is very suitable for the diswelding of various solder joints, especially for the diswelding of large solder joints, rough blocks and miscellaneous difficult solder joints.
10. Iron part is anti-static design, to prevent electrostatic damage to delicate SMD components.
11. Soldering iron has a 10-minute fixed hibernation function. When no one is in use, the soldering iron is at rest. After about 10 minutes, the soldering iron will enter the hibernation state.
12. Using Ferro-alloy Suction tin gun and Soldering iron in one holder, durable, avoid burns.
Warm reminder:
When using the suction tin gun, the display temperature flashes (preheating), only when the temperature reaches the set temperature, the display stops flashing and (beep) sounds (preheating is complete), the vacuum pump can work.
Parameters
| Model: | 201A+ |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 150W |
| Weight: | 4.74kg |
| Inner box size: | 350*275*160mm |
| Packing quantity: | 4 pieces / box |
| Outer packing size: | 575*365*380mm |
| Suction tin gun | |
| Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 90W |
| Display form: | LED digital (Resolution 1℃) |
| Heating element: | Ceramic heating core |
| Temperature range: | 350℃－480℃ |
| Temperature stability: | ±1℃ |
| Type of air flow: | Vacuum pump |
| Suction Pressure: | 0.05MPa |
| Noise: | Less than 45dB |
| Handle length: | About 100cm (Including handle line) |
| Soldering iron | |
| Working voltage: | 24V/AC |
| Rated power: | 22W |
| Power consumption: | 60W |
| Maximum power: | 120W |
| Display form: | LED digital (Resolution 1℃) |
| Temperature range: | 200℃－480℃ |
| Heating element: | 131A ceramic heating core |
| Temperature stability: | ±2℃(no load) |
| Handle length: | About 100cm (Including handle line) |
Standard Configuration
Host machine: 1 pcs
Suction tin gun handle (include 1.0mm Suction tip and heater): 1 pcs
Soldering iron handle (include iron tip and heater): 1 pcs
Suction tin gun and Soldering iron in one holder (include Cleaning sponge): 1 pcs
Suction tip: 1 pcs (1.2mm)
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Electrical soldering operation
5. Skill training in all kinds of electronic institutions
About the Suction tin gun
By heating the suction tip to conduct heat, causing the solder to heat up and melt. Then, the vacuum pump is used to suck the melted solder into the suction chamber, so as to achieve the diswelding of electronic components. This tool is often used to repair and assemble electronic equipment, especially where components need to be replaced or circuits repaired. It removes solder quickly and accurately, increasing work efficiency while also protecting circuit boards and other electronic components from damage.
1. Suitable for a variety of upright components and other special desoldering, especially suitable for more pin in-line components (such as transformers, LCD screens, digital tubes, integrated chips, pins, etc.) welding.
About the Soldering iron
By heating the welding tip to conduct heat to heat the solder and melt it, to achieve the desoldering of electronic components.
1. Suitable for relatively larger solder joints or pads to provide enough heat for better completion of welding operations.
2. For thicker and larger solder joints and pads, you can try replacing the soldering iron tip with a larger contact area or use a hot air gun for welding.
