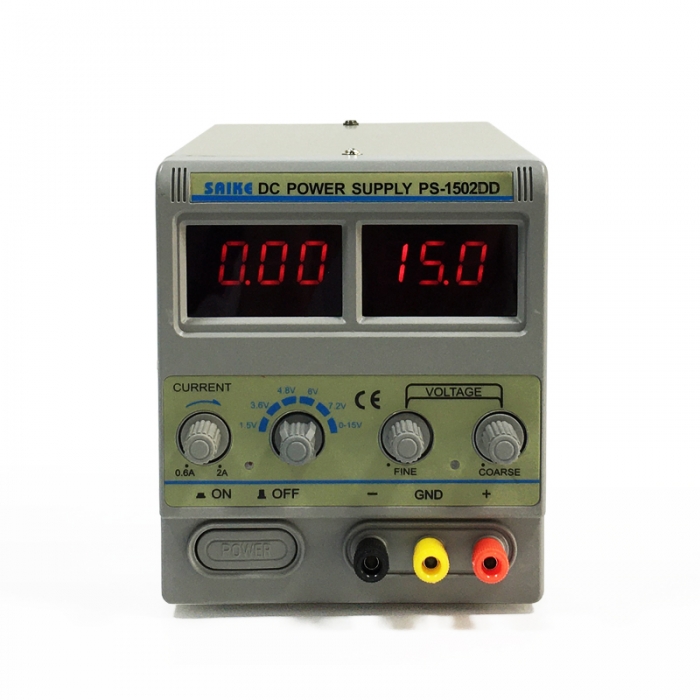

SAIKE 1502DD DC regulated power supply 15V 2A
$30.00
Description
Features
1. This DC regulated power supply adopts high efficiency turn-off protection technology to ensure high precision DC voltage regulation output. Its fast protection mechanism can cut off the output in time to avoid damage to the load when the load is overcurrent or short circuit. After the fault is rectified, the power supply automatically recovers. In addition, it has five different voltage output options, providing special features that facilitate different equipment maintenance. The universal output terminal design makes it suitable for a variety of scenarios, including laboratories, schools and production lines.
2. DC regulated power supply has six voltage gears, the first five gears (1.5V, 3.6V, 4.8V, 6.0V, 7.2V) are fixed voltage gear, while the last gear is 0-15V adjustable gear. In the last adjustable position, the output voltage can be adjusted freely.
3. DC regulated power supply also has a current limiting adjustment function. The current limit range can be set to 0.6 to 2A as required. When the current exceeds the preset value, the power supply will automatically cut off the output until the fault is eliminated and can be automatically restored. This automatic shut-off function ensures the safety and stability of the power supply in case of overload.
4. The back of the DC regulated power supply is provided with a fuse holder to ensure the safety of electricity consumption.
5. DC regulated power supply part is equipped with continuous short-circuit protection and recovery function to avoid all kinds of unexpected interference burning load phenomenon.
6. DC regulated voltage power supply can output DC voltage, not only as a mobile phone repair power supply, but also can be used to check and repair other electronic circuits or components.
Parameters
| Model: | 1502DD |
| Input voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 30W |
| Weight: | 1.48kg |
| Inner box size: | mm |
| Packing quantity: | 12 Piece / boxes |
| Outer packing size: | 498*425*350mm |
| DC regulated power supply | |
| Working voltage: | 220V~240V/AC, 50Hz (110V/AC, 60Hz) |
| Power consumption: | 30W |
| Display form: | LED digital |
| Voltage display precision: | 0.1V |
| Current display precision: | 10mA |
| Output voltage: | 0~15V |
| Output current: | 0~2A |
| Overload current: | 0.6~2A |
| General parameters | |
| Operating Temperature: | -10℃~40℃ |
| Relative Humidity: | <90% |
| Storage Temperature: | -20℃~40℃ |
| Storage humidity: | <80% |
| Power stability: | ≤0.01%±2mV |
| Load Rated degrees: | ≤0.01%±2mV ( 1mav < 1A ) |
| Ripple noise: | ≤0.5mVrms ( 5Hz – 1MHz ) lomax greater than 1A |
| Temperature Coefficient: | ≤300PPM/℃ |
Standard Configuration
Host machine: 1 pcs
User manual: 1 pcs
Application
1. Electronic product assembly
2. Product development in scientific research departments
3. Electronic products maintenance
4. Factory production line
5. Skill training in all kinds of electronic institutions
About DC regulated power supply
By output dc voltage, measurement and fault diagnosis of electronic components.
1. Dc voltage regulator power supply can provide reliable DC voltage for circuit boards and electronic devices to ensure their normal operation and stability, so as to facilitate debugging, testing or repair and other fault judgment.
Related Names
Voltage Regulated Power Supply | Electrician Power Device | Stabilized DC Power Source
Additional information
| Weight | 1.48 kg |
|---|---|
| Rated Voltage | 110V, 220V |

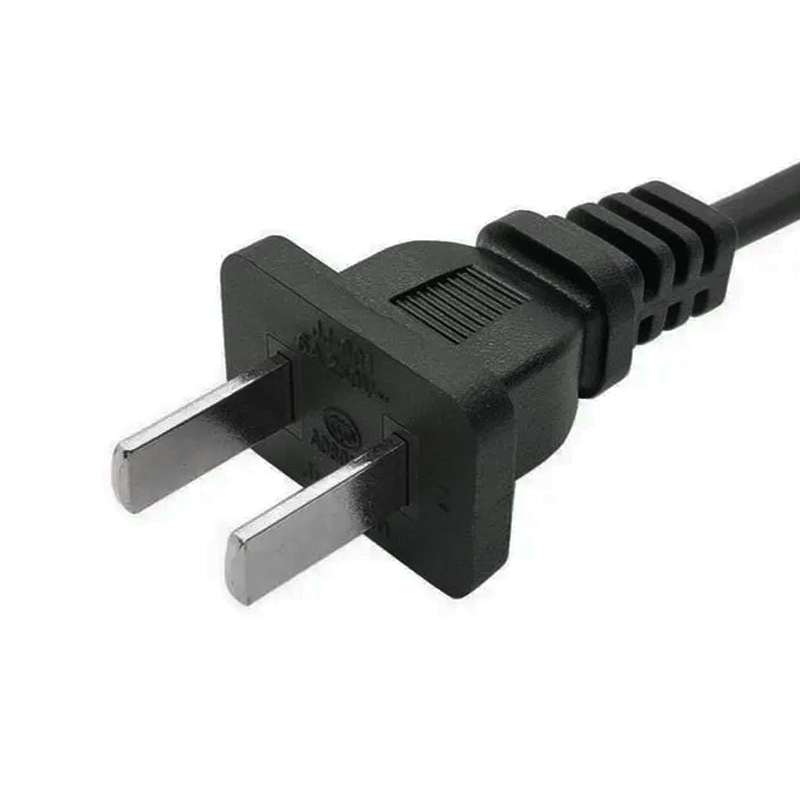

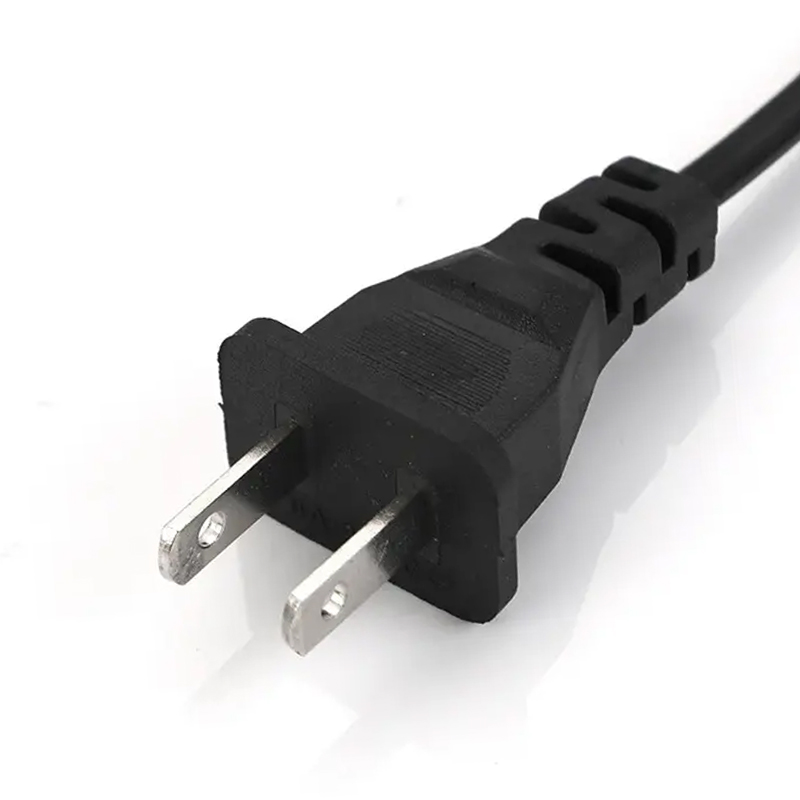

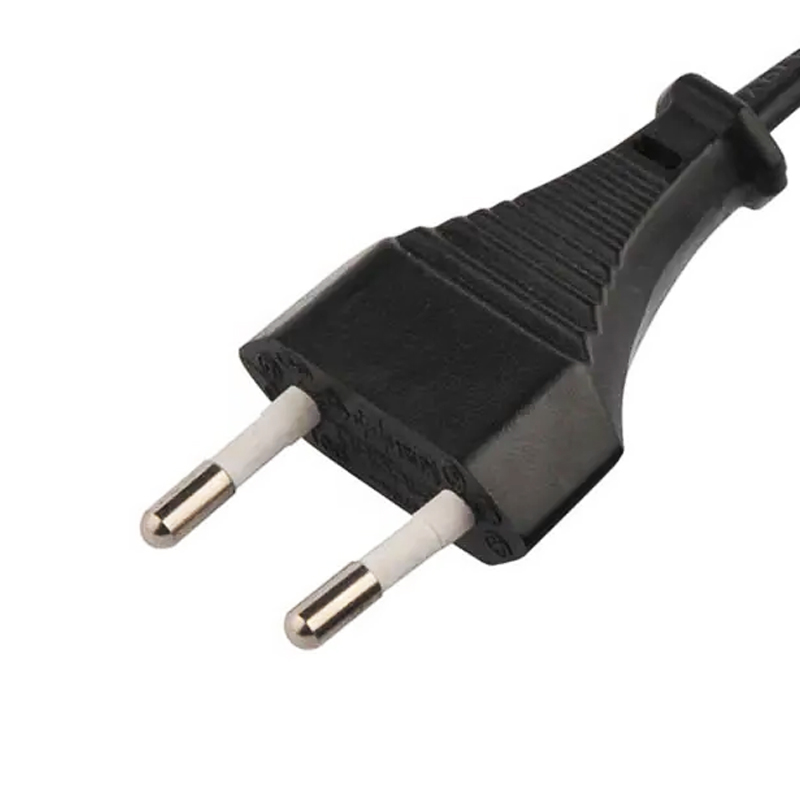

| Power Plug | CN-2, EU-2, US-2 |
